Products Description
Hydro seeding technology is more and more popular in large area grass projects. Small Hydroseeding Machine is with powerful diesel engine, agitation system with hydraulic motor drive or diesel engine drive,strong centrifugal pump for spraying thicker material ( 60%-70% solid content in the mixture ). It is specially designed for grass projects which soil condition is tough and spraying distance is long. Such as slope greening, erosion control, landfill cover, mine reclamation, dust control,etc.
Technical Parameters
| Small Hydroseeding Machine | |||
| Model | DF1020 | DF2023 | DF4060 |
| Diesel engine | Changchai/Cummins | Changchai/Cummins | Huadong/Cummins |
| Engine Power | 20kw | 23kw | 60kw |
| Cooling method | Water-cooled | ||
| Tank capacity | 1000L/264 Gallon | 2000L/528 Gallon | 4000L/1056 Gallon |
| Pump type | Centrifugal pump | ||
| Pump output | 50m3/h | 50m3/h | 60m3/h |
| Agitation | Mechanical paddle agitator and liquid recirculation | ||
| Agitator drive | Reversible,variable speed hydraulic motor drive or diesel engine drive(0-100rpm) | ||
| Discharge distance by spraying gun | horizontal 12-25m | horizontal 18-30m | horizontal 25-40m |
| vertical 8-15m | vertical 15-25m | vertical 18-35m | |
| Conveying distance by hose | 20-40m | 20-55m | 50-80m |
| Weight | 900kg | 1300kg | 2500kg |
| Dimension | 1500*1300*1300mm | 2600*1500*2000mm | 3200*1800*2300mm |
Features
The material of main structure is made of high quality structural steel
No matter how worse the soil conditions are, it ensure seeding successfully. And it has reasonable, generous appearance. Painted with imported painting to guarantee of three-year no fading.
Advanced technology
It even mixes for materials which have poor mobility, no blocking, and no stopping, well adaptation of various materials, big output pressure.
Two mixing models
Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is fully mixed, evenly emitting the mixture of raw materials at one time.
Strong power
It has strong power, the maximum head can be above 60m, and be equipped with many types of spraying guns, which extend the maximum operation scope from 200m to 300m; fan-shaped spray nozzle or mist spraying is more suitable for close-distance planting to meet various requirements.

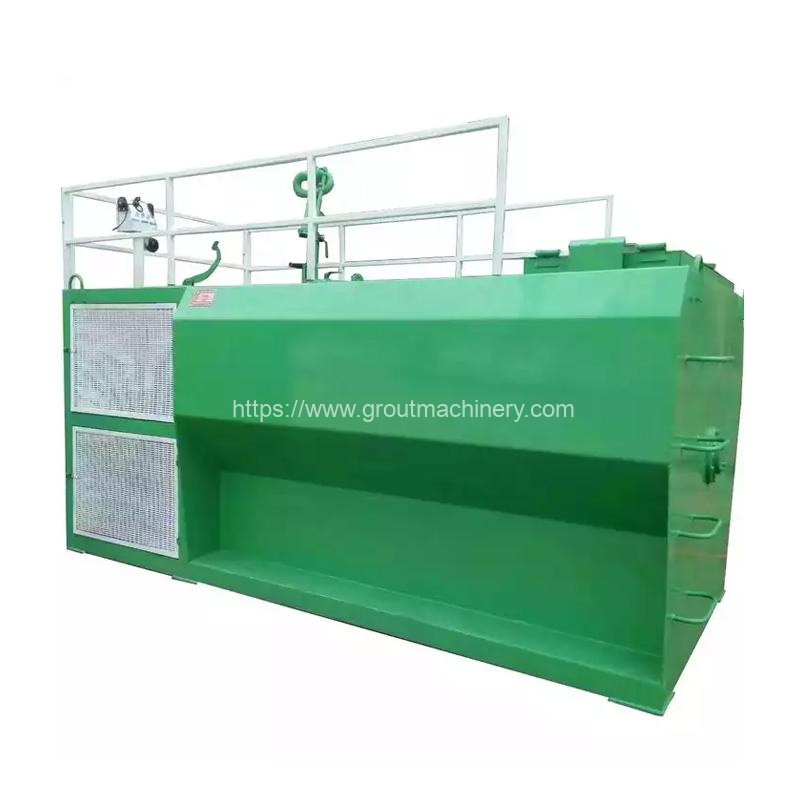

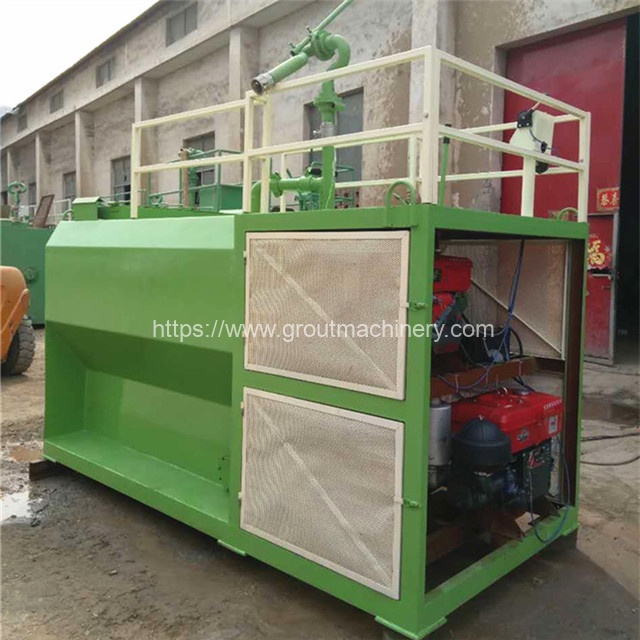

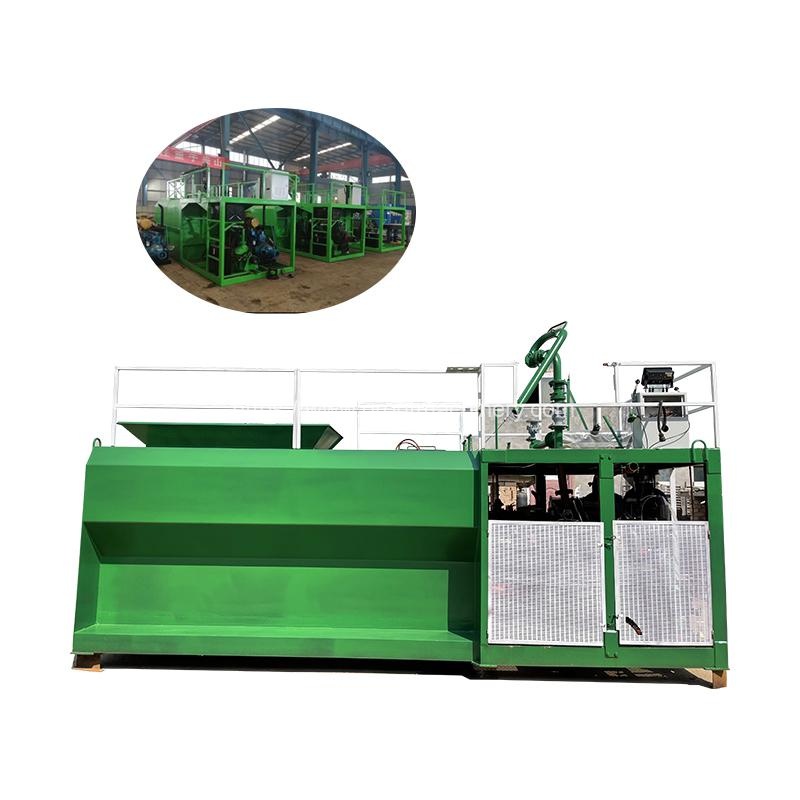

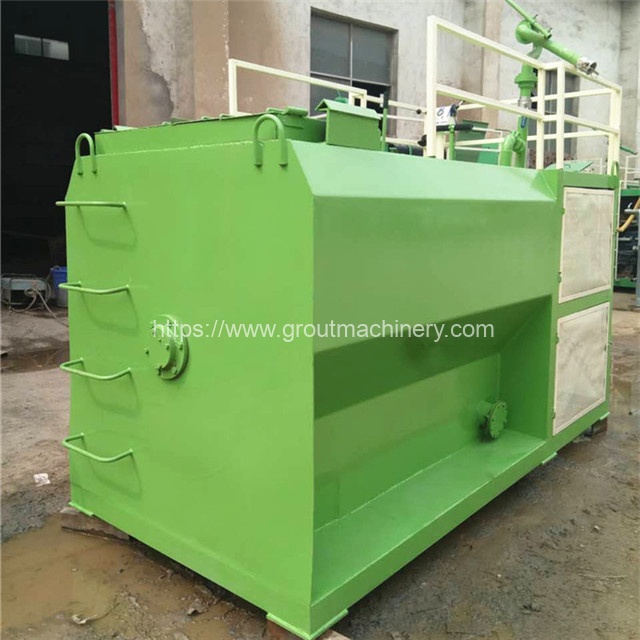

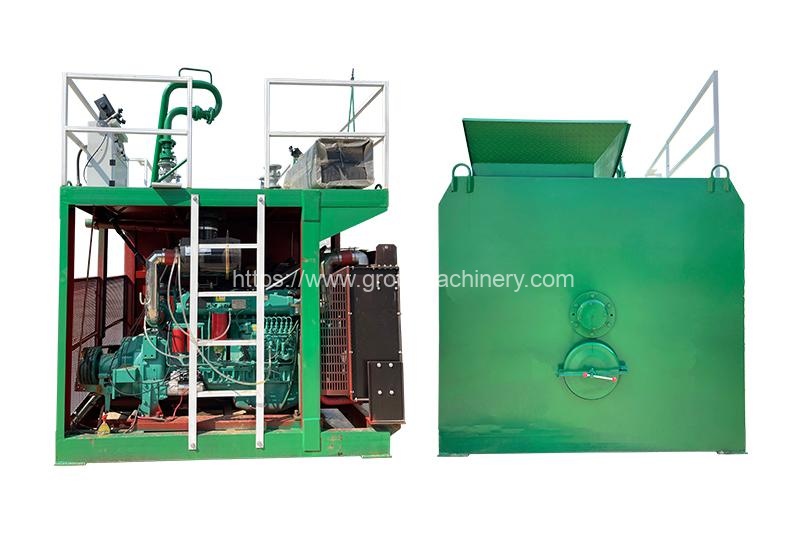

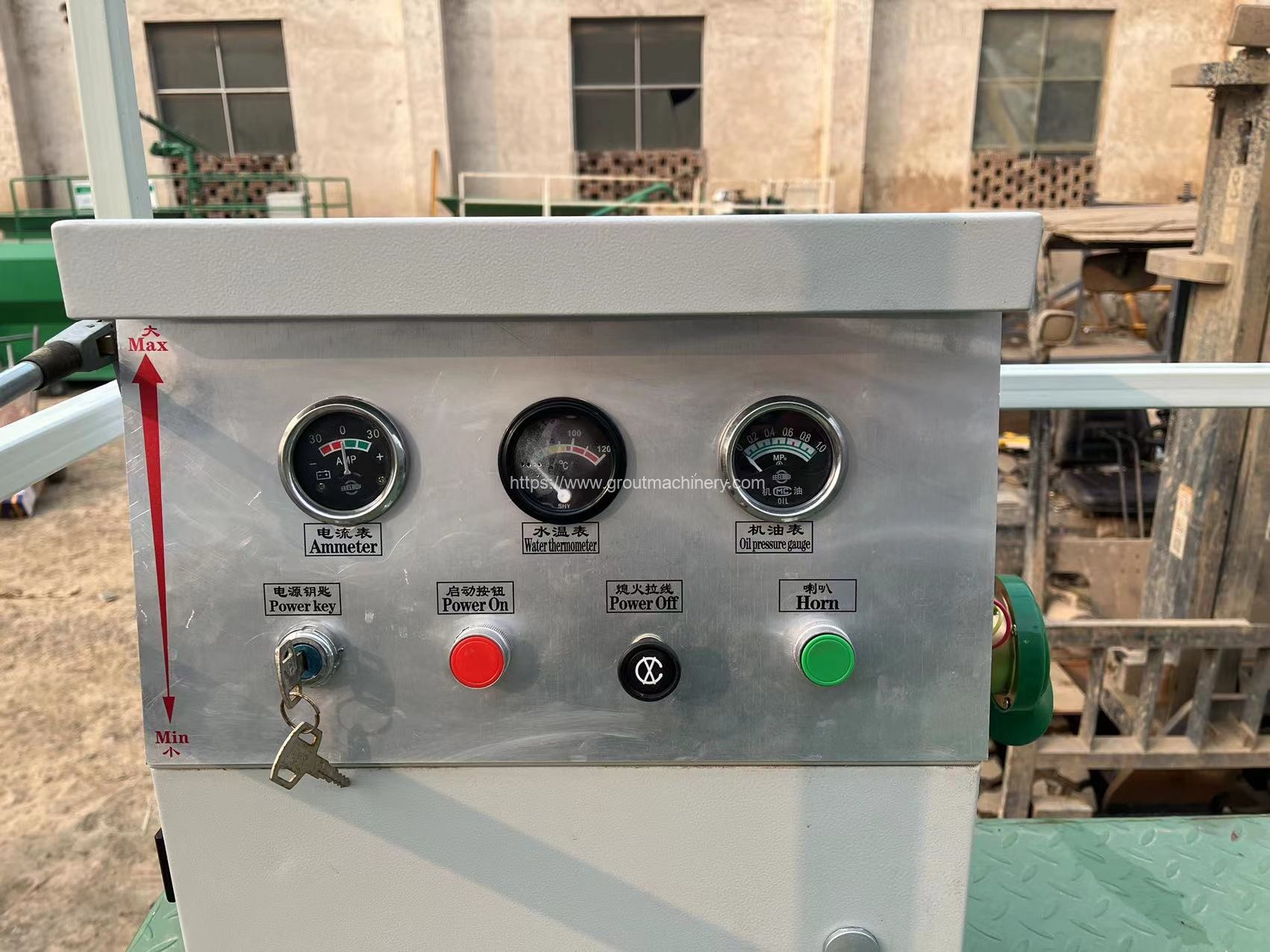

Detail images
Mini Hydroseeder test Video
Construction Video
Application
Factory Show
FAQ
1.Q: What is the guarantee period of hydroseeding equipment?
A: It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine and diesel engine when delivery.
2.Q: What is the diesel engine brand of hydroseeding machine?
A: Usually we adopt Changchai or Huadong diesel which is famous in China, we also can supply Cummins diesel.
3.Q: What is the ratio of soil, grass seed, fertilizer, etc?
A: The ratio depends on the soil locally. So it is better for you to take some photo of your soil, and tell us the slope angle, height, soil condition, etc. then we will recommend you a suitable ratio.
4.Q: Can you supply or introduce to me grass seed supplier?
A: It’s ok, our factory is manufacturing and selling hydroseeder many years in China, we also have our own team do hydroseeding project in China, there are good cooperator of grass seed supplier.
5.Q: What is the horizontal and vertical working distance of hydroseeding machine?
A: Our hydroseeding equipment max. horizontal spraying distance is 55-90m with gun, max. vertical spraying distance is 60m with gun; max.conveying distance is 80-150m with hose.
6.Q: Which project will you do with hydro seeder?
A: For slope greening, golf course, lawn or other landscape projects.Different projects require different spraying distance and tank capacity. Our professional engineer will make the hydroseeder as per your detailed requirement on project.
This is our Small Hydroseeding Machine, we have machine with different capacity, and their prices are different, you can contact us to get suitable machinery according to your project. Also custom machine is available as per your project.
