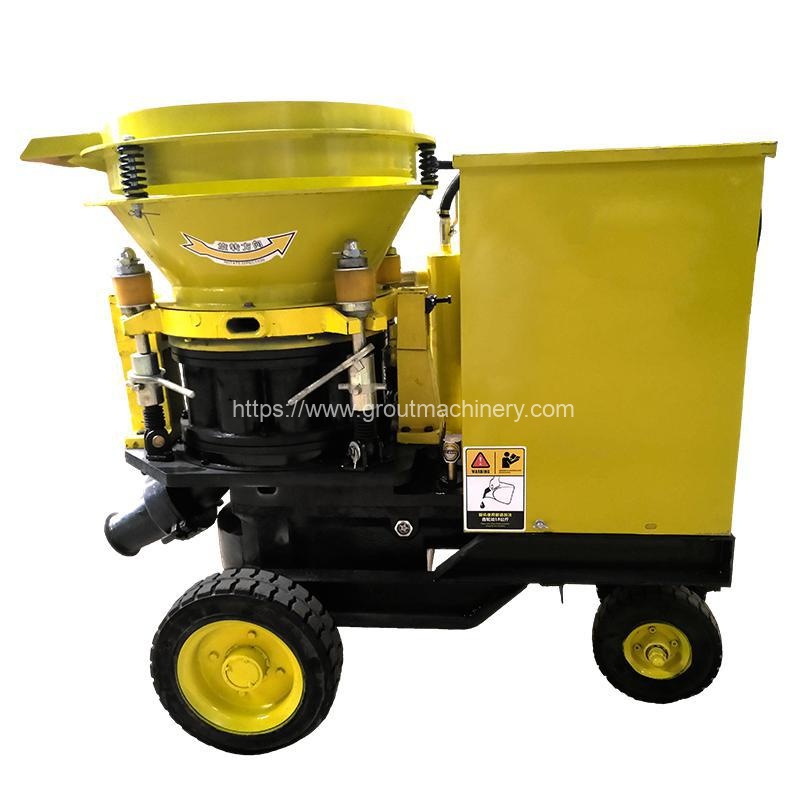

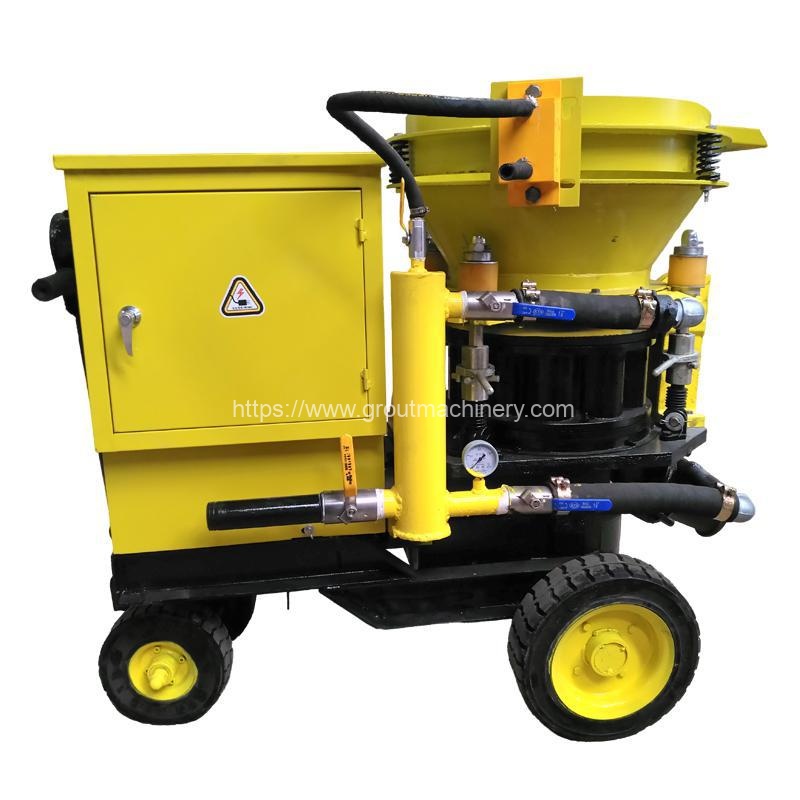

SPZ-3 Dry Shotcrete Machine for tunnel,culvert,subway,slope support,hydropower engineering underground engineering and shotcrete construction of coal mine high gas mine roadway.
Products Description
The SPZ series concrete shotcrete machine are an anchor shotcrete support equipment for shotcrete,the features are well-structured,Perfect and stable performance. Easy to apply and maintain and durable.It’s good at mine,tunnel,culvert,subway,slope support,hydropower engineering underground engineering and shotcrete construction of coal mine high gas mine roadway.
The working principle of the SPZ series concrete shotcrete machine：
Technical Parameters
| SPZ-3 Dry Shotcrete Machine for Shotcrete Construction | |
| Model | SPZ-3 |
| Spray Capacity | 3m³/h |
| Horizontal | 200m |
| Vertical | 20m |
| Water Cement Ratio | <0.4 |
| Max. Aggregate Size | Ø20mm |
| Operating Air Pressure | 0.4-0.6mpa |
| Air Consumption | 3-4m³/min |
| Power | 3kw |
| Size | 1040*550*950mm |
| Weight | 260kg |
Features of dry shotcrete machine
1.Through-rotor,Smooth discharge,efficiency.
2.Four-point elastic Compensation Compression,good sealing effect,less dust,Wearing parts reinforce.
3.Low-pressure high-speed vortex air transport,overcome sticking in material conveying,plugging and pulse distraction.The material flow is uniform, continuous and stable.
4.New nozzle,outlet elbow device,improve spray effect,less rebound,high quality spray layer.
5.The shotcrete chassis can be assembled into a tire type,skid type and rail wheel type of various gauges.
Details Images
Application
Factory Show
FAQ
1. Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer’s logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A:Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
6. Q: What’s the payment you accept ?
A: As usual our payment is 50%T/T as deposit, and the 50% balance against the copy of B/L. Also we accept the payment such as L/C ,Escrow Or PayPal .
This is our SPZ-3 Dry Shotcrete Machine for Shotcrete Construction, we have machine with different capacity, and their prices are different, you can contact us to get suitable machinery according to your project. Also custom machine is available as per your project.
