Description:
Robotic Shotcrete machine is a kind of special equipment which can spray the ready-mixed concrete to the sprayed surface at high speed and form concrete support layer after rapid condensation.
DHSP3017-AC Robotic Shotcrete machine is a large concrete wet shotcrete machine, widely used in railway, highway tunnel, slope, water conservancy, hydropower tunnel and culvert, subway and various construction projects and other wet shotcrete operations.
Robotic Shotcrete machine DHSP3017 AC working principle
The working principle of wet spraying concrete car: such as cement, aggregate, water and additive according to the construction of mix, use transportation vehicles transporting to the site of the injection and add wet spraying trolley, through wet spraying trolley system of pumping concrete pump nozzle to the place, mixed with computer automatic matching with the control of accelerator, with a high pressure air injection.
Advantages:
- Higher safety
The operator use manipulator to spray concrete and stay away from working plane thus have higher safety and reduce the dust damage to operator.
- Higher efficiency
The max. output can be 30m³/h and takes less working time.
- Lower rebound rate
It can reduce the rebound rate and save cost.
Features:
- Integral rigid wheeled special engineering chassis
- Four vertical support legs, stable and reliable, no gap
- Four wheel drive dieselpower system
- High efficient and stable concrete conveying system
- Multi-degree-of-freedom manipulator
- Wireless remote control and PLC electronic control system
- Intelligent accelerator adding system
- High pressure cleaning pump
- Cable reel
- Air compressor (optional)
Robotic Shotcrete machine DHSP3017 AC technical parameters
Theoretical injection displacement: 30m3/h
Jet height: 17m
Spray width: 30m
Engine power: 103kw
Motor power: 55kw
Accelerator pump flow: 0~1200L/h
Working pressure of accelerator pump: 1.2MPa
Screw air compressor power: 75KW
Screw air compressor exhaust volume: 13m3/min
Screw air compressor working pressure: 0.8MPa

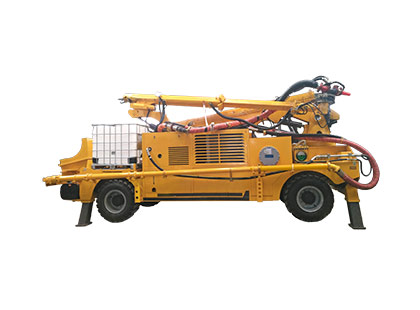

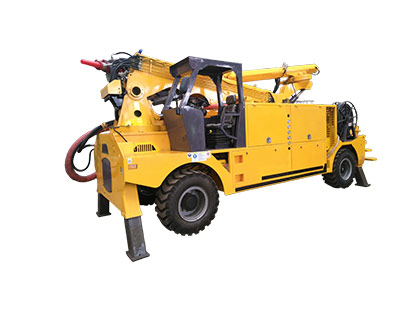

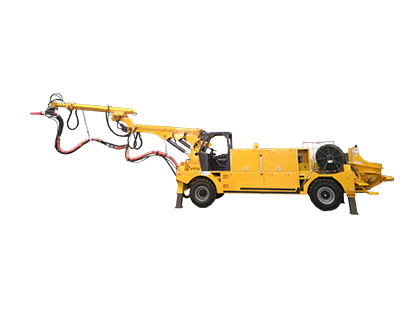

Product atlas
-

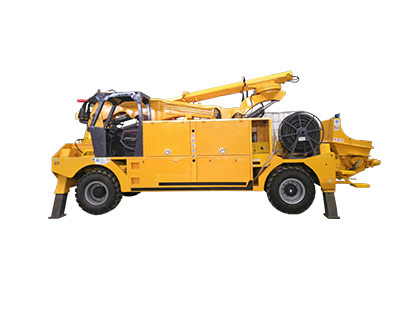

- DHSP3017-AC Robotic Shotcrete machine-2
This is our Robotic Shotcrete machine DHSP3017 AC, we have machine with different capacity, and their prices are different, you can contact us to get suitable machinery according to your project. Also custom machine is available as per your project.
