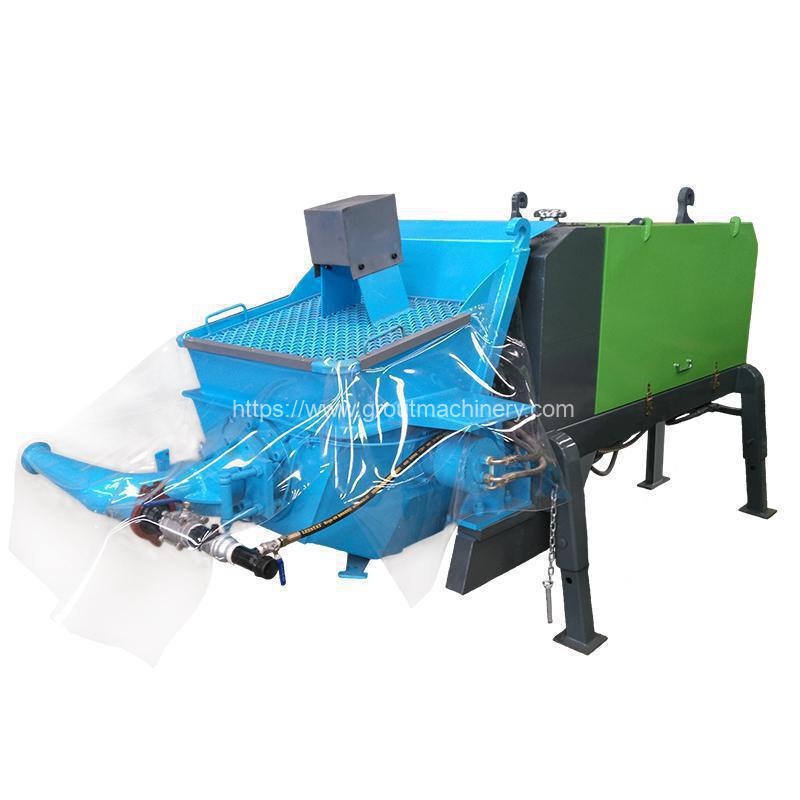

DYP-90 wet shotcrete machine for highway, railway, tunnel and hydropower station etc.
Products Description
DYP-90 series hydraulic wet shotcrete machine is a pumping type concrete wet shotcrete machine,which adopts hydraulic pumping type, with high system reliability and stable delivery capacity.The hydraulic wet spraying machine can be used for grouting, filling, grouting, pumping and other construction.Continuous adjustment of injection quantity and the main oil pump adopts variable piston pump, and the injection speed can be adjusted freely .The adding amount of accelerator is continuously adjustable, which can be adjusted steplessly according to the spraying amount.DYP-90 hydraulic wet spraying machine is widely used in construction of highway, railway, tunnel and hydropower station etc.
Technical Parameters
| DYP90 wet shotcrete machine | |
| Production capacity | 3-9m³ /h(Continuously VariableTransmission) |
| Main motor power | 22KW |
| Aggregate diameter | ≤ 15mm |
| System max.pressure | 16Mpa |
| Working air pressure | 0.4-0.6Mpa |
| Concrete slump | 12-18cm |
| Max.spraying distance | horizontal 100m, vertical 60m |
| Cylinder | 140mm |
| Cylinder stroke | 580mm |
| Electric control system | LCD display, plug-in appliances |
| Lubrication system | Automatically |
| Accelerator pump | 0-1000L/h (Continuously VariableTransmission) |
| Mixing system | 0.5m3 mixing tank |
| Tire | None |
| Total Weight | 2300KG |
| Dimension | 3450 * 1550 * 1650mm |

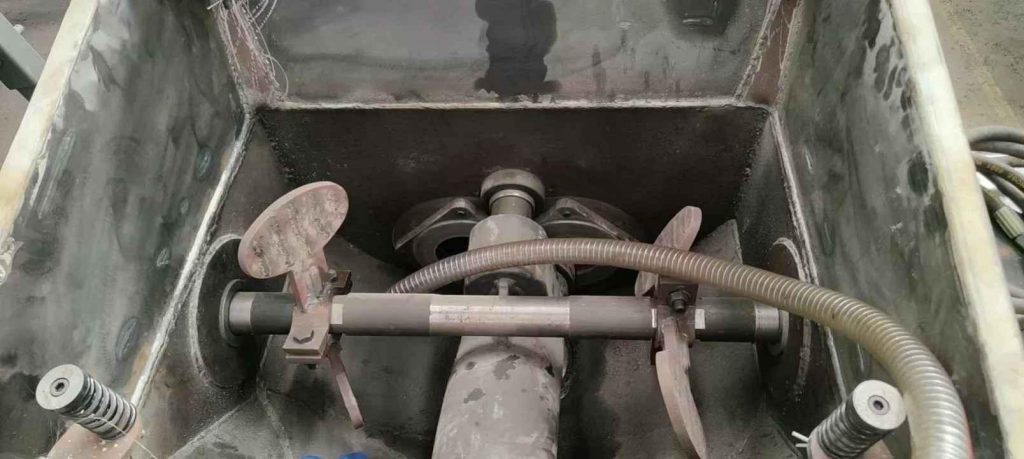

90 hopper without mixing
Performance characteristics:
1. Large transmission capacity and high comprehensive efficiency.
2. Long spraying distance up to 100m horizontally and 60m vertically.
3. One machine can be used for multiple purposes which can be used not only as a wet spraying machine, but also as a concrete delivery pump or mortar pump.
4. Key components from well-known domestic manufacturers are used to ensure high reliability of equipment.
5. The adding amount of accelerator is continuously adjustable and it can be adjusted steplessly according to the spraying amount.
6. Equipped with automatic lubrication system,the service life of wearing parts is greatly extended.
7. Four wheel solid tire, easy to move, and easy to operate and maintain.
8. The hydraulic oil is cooled by air which is simple and environmentally friendly.
9. Low resilience. With wet spraying technology, the resilience rate can even be reduced to less than 10%, and effectively
saving costs.
10. The concentration of dust beside the machine and outside the nozzle is reduced, so that it can eliminate the harm to workers’ health.
Application
Factory Show
FAQ
1. Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer’s logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A:Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
6. Q: What’s the payment you accept ?
A: As usual our payment is 50%T/T as deposit, and the 50% balance against the copy of B/L. Also we accept the payment such as L/C ,Escrow Or PayPal .
This is our DYP-90 wet shotcrete machine with mixing hopper for Sale, we have machine with different capacity, and their prices are different, you can contact us to get suitable machinery according to your project. Also custom machine is available as per your project.
