DTK800 Concrete wet shotcrete machine for subway tunnels

Wet Shotcrete Machine | October 12, 2022 9:52 PM

DTK800 rotor type wet concrete spraying machine is a rotor piston type concrete spraying machine,it adopt mature rotor piston which feeding mechanism to Solve the problem of sticking and clogging of wet-mixed finished concrete materials in the rotor silo.Achieving uniform continuous small pellet feeding and uniform thin flow conveying in the pipeline.

DTK800 Concrete wet shotcrete machine for engineering construction of railway and highway tunnels, water conservancy and waterpower, subway tunnels, mine roadways, military facilities, various underground buildings and emergency rescue.

Products Description

Hydropower station air compressor for concrete one cement plaster spray shotcrete machine

DTK800 wet shotcrete machine is a rotor type concrete spraying machine,it adopt mature rotor which feeding mechanism to Solve the problem of sticking and clogging of wet-mixed finished concrete materials in the rotor silo.Achieving uniform continuous small pellet feeding and uniform thin flow conveying in the pipeline.DTK800 rotor type wet shotcrete machine has the characteristics of reasonable design structure, stable performance,convenient operation and maintenance, and long service life.It is widely used in the engineering construction of railway and highway tunnels, water conservancy and waterpower, subway tunnels, mine roadways, military facilities, various underground buildings and emergency rescue.

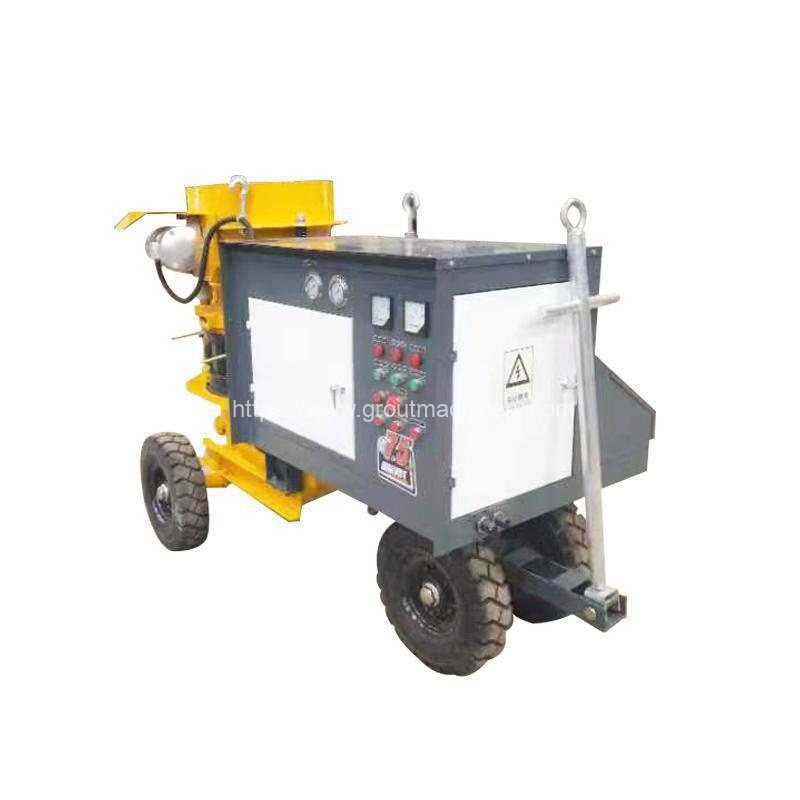

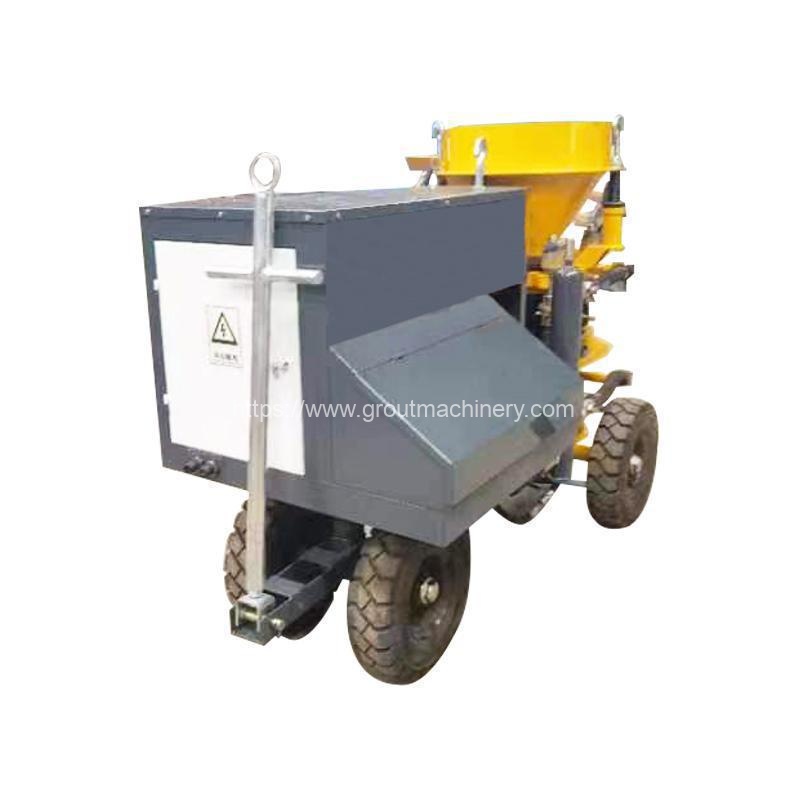

DTK800 Concrete wet shotcrete machin-2

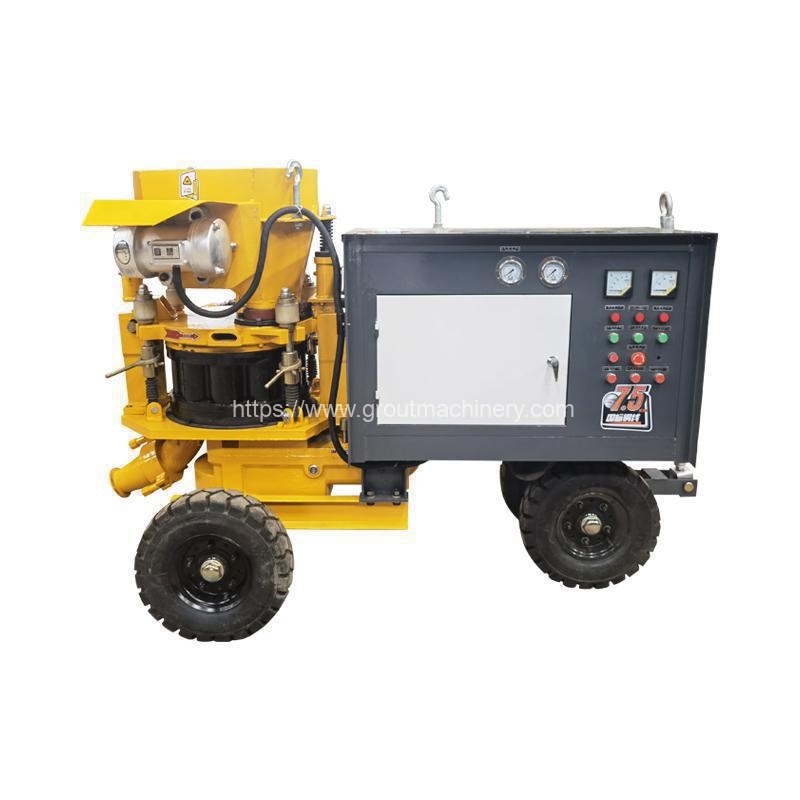

DTK800 Concrete wet shotcrete machine-1

Technical Parameters

DTK800 Concrete wet shotcrete machine
Production capacity 8m3/h
Aggregate particle size 15mm
Inner diameter of feeding hose 57MM
Appropriate concrete slump 8-15CM
Working air pressure 0.4-0.6MPa
Max.Air consumption 12m3/min
Conveying distance Horizontal:30m,Vertical:20m
Main motor power 7.5KW
Dimensions (L×W×H) 2050*900*1280mm
Machine quality 1280KG

Performance characteristics:

1.High efficiency, high performance (high performance of sprayed concrete, dense and homogeneous), high reliability and low consumption.
2.Simultaneous radial feeding of three material cavities to achieve uniform thin flow transportation in plastic concrete pipes.
3.The metering pump is accurate and adjustable, and the high-quality material flow of the atomized jet and nozzle makes the accelerator and concrete mix evenly.
4.Using anti-stick technology, the piston in the machine is forced to pump and feed the material to solve the problem of material sticking in the material cavity.
5.Unique structure and reliable performance.

Details Images

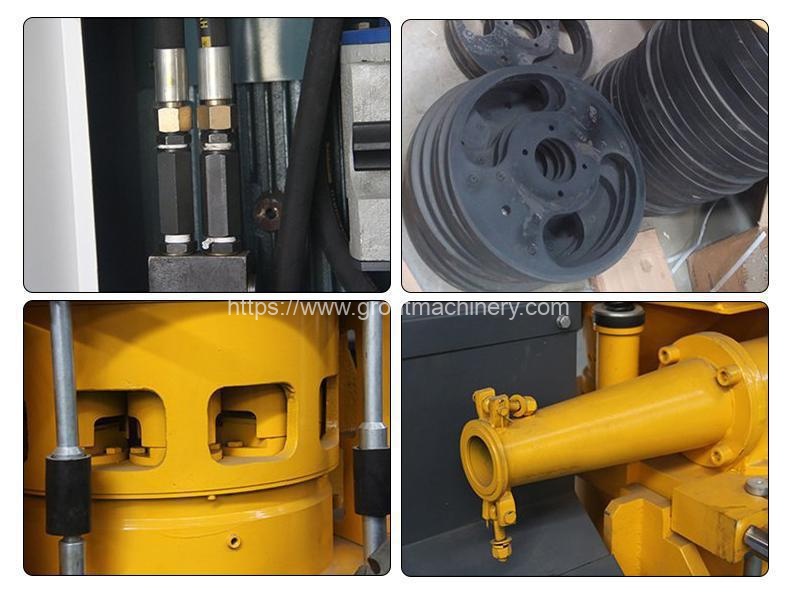

DTK800 Concrete wet shotcrete machine-details

Application

DTK800 Concrete wet shotcrete machine-application


FAQ

1. Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer’s logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A:Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
6. Q: What’s the payment you accept ?
A: As usual our payment is 50%T/T as deposit, and the 50% balance against the copy of B/L. Also we accept the payment such as L/C ,Escrow Or PayPal .


This is our DTK800 Concrete wet shotcrete machine for subway tunnels, we have machine with different capacity, and their prices are different, you can contact us to get suitable machinery according to your project. Also custom machine is available as per your project.
