Description

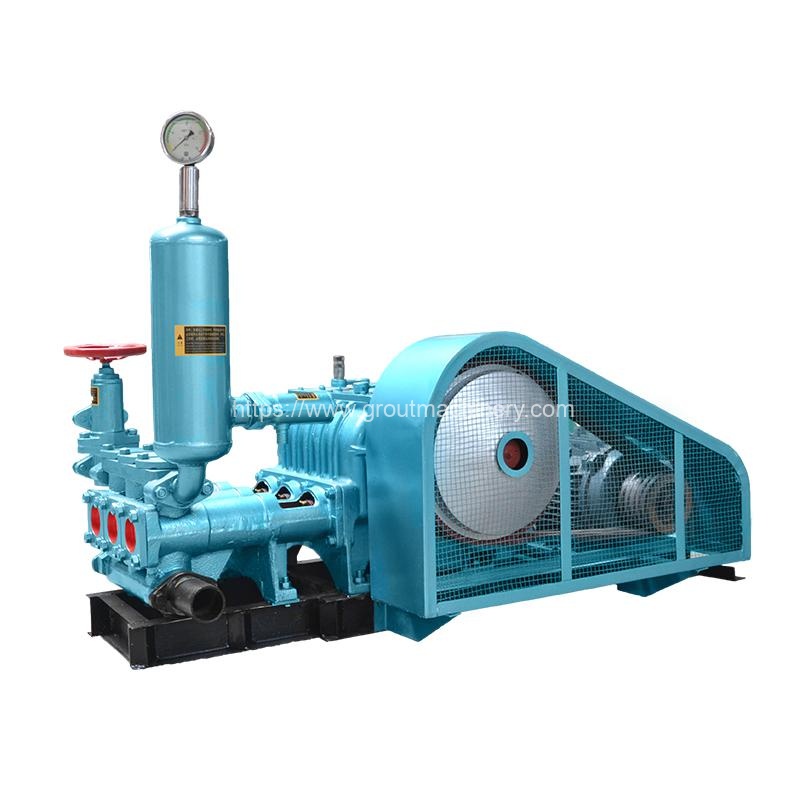

BW250-80 Electric Grout Pump is a horizontal three-cylinder reciprocating horizontal piston pump. BW250-80 Electric Grout Pump has four flow rates and pressures, with a wide range of flow rates and pressures. BW250-80 Electric Grout Pump is compact, lightweight, long-life and easy to operate. It is flexible, reliable and has many common standard parts. It is portable, so it is easy to move. It can be used in railroad, water conservancy, metallurgy, construction, geology and other industries where the hole depth is up to 1000m.
BW250-80 Electric Grout Pump, simple structure, easy to maintain and operate. The piston is lip-shaped self-sealing type, pressed by rubber and nylon protection gasket, equipped with anti-vibration pressure gauge and necessary spare parts, disassembly and installation tools, etc. It can be equipped with optional bimetal cylinder liner, which greatly increases its service life.
Features
1.BW250-80 Electric Grout Pump can be used for geological core drilling, chemical liquid conveying, mine drainage and soft base grouting construction.
2. BW250-80 Electric Grout Pump has four different flow rates and pressures, with a wide range of variation and application.
3.BW250-80 Electric Grout Pump compact structure, light weight, small volume, beautiful appearance, can be driven by hydraulic motor, motor, diesel engine.
4. high degree of standardization and generalization of zero BW250-80 Electric Grout Pump parts, easy maintenance and operation.
5. BW250-80 Electric Grout Pump long life of wearing parts, high reliability.
Technical Parameters
| BW250-80 Electric Grout Pump for Sale | ||||
| Model | BW250-80 | |||
| Type | horizontal three cylinder reciprocating single acting piston pump | |||
| Stroke length (mm) | 100 | |||
| Cylinder dia. (mm) | 80 | |||
| Pump speed(min-1) | 200 | 116 | 72 | 42 |
| Flow(L/min) | 250 | 145 | 90 | 52 |
| Pressure(Mpa) | 2.5 | 4.5 | 6.0 | 6.0 |
| Volume fraction(%) | 85 | |||
| Total efficiency(%) | 72 | |||
| Power(kw) | 15 | |||
| Pitch dia. of V-belt pulley(mm) | Type B X 5 groove 410 | |||
| Input speed(r/min) | 500 | |||
| Water absorption height(m) | ＜2.5 | |||
| Dia. of water outlet pipe(mm) | 2”/51mm two layers steel high pressure hose | |||
| Dimension(mm) | 1100*995*650 | |||
| Weight(kg) | 500 | |||
Use
It is mainly used for supplying flushing fluid in drilling of geology, geothermal, water source, shallow oil and gas layer, etc. The flushing fluid can be divided into mud and clear water, etc. It can also be used as a pump for the above medium. It can be used with water well drilling rigs of 1000-1500m depth and 130-90mm aperture.
Details

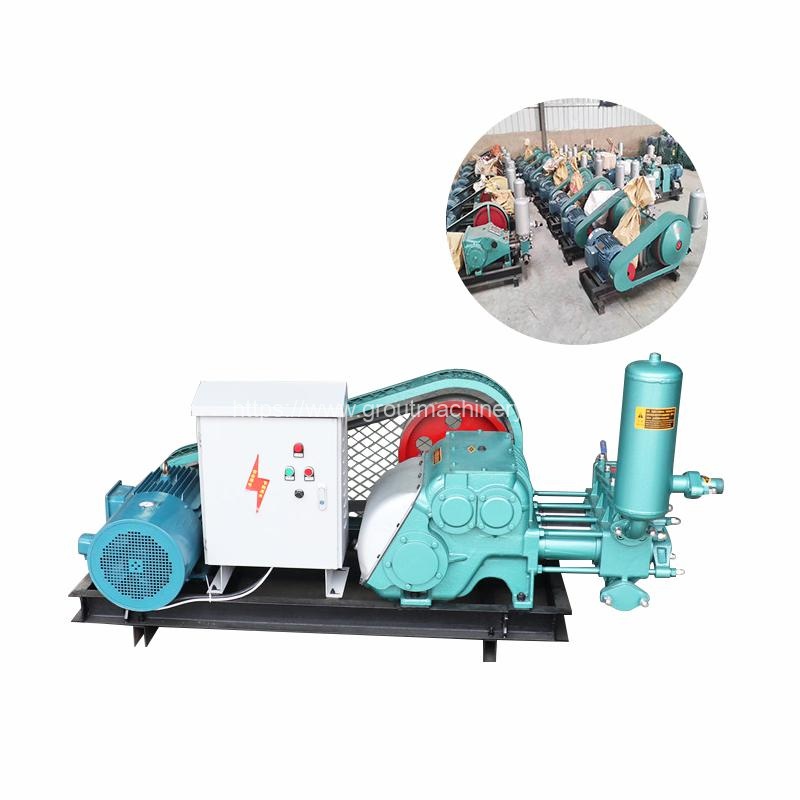

Factory Show
Application
This is our BW250-80 Electric Grout Pump for Sale, we have machine with different capacity, and their prices are different, you can contact us to get suitable machinery according to your project. Also custom machine is available as per your project.
